2 CBM Underground Electric and Diesel Mining Scooptram

Name: 2 CBM Underground Electric and Diesel Mining Scooptram
Brand: Yuanyi
Price: 70000 USD

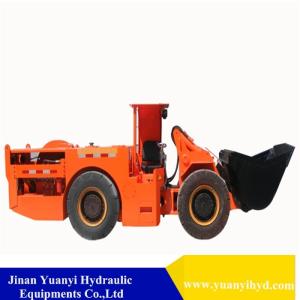

Wholesale 2 CBM Underground Electric and Diesel Mining Scooptram from china suppliers

Brand Name : Yuanyi

Model Number : YY-1D

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : USD70000 one set

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100 sets per month

Delivery Time : within 15 days after payment

Packaging Details : In wooden box

Condition : New

Warranty : full one year

Application : Coal Mining

Usage : Underground Mining

Diesel engine : DEUTZ

Color : Customer's Request

Bucket volume : 2 m3

Type : diesel engine scooptram

Contact Now

2 CBM Underground Electric and Diesel Mining Scooptram

Main features

Germany DEUTZ F6L914 diesel Engine, low emissions, low pollution and big power.
Excellent performance with parker hydraulic gear pump & valve, MICO valve.
Ergonomics designed compartment improve the control of bucket lifting and tilting, guarantee safety and minimal fatigue for operator.
Hydraulic double pipe working system, equipped with multi-disk wet brake, self-developed anti-skid differential mechanism of NO-SPIN.
Advanced way of three-point suspension articulated, improving layout form of oscillating axle.
Optional parts with ejector bucket and side dump buck.

Main Configuration and Technical Parameters

Diesel Engine
Brand: Germany DEUTZ
Rated Power: 52KW/2300rpm

General Parameters
Rated capacity: 2000kg
Length 5700mm
Width(bucket): 1395mm
Width(frame): 1300mm
Height(cabin): 1920mm
Bucket volume: 1 m3
Discharging height: 1300mm
Wheelbase: 1880 mm
Min. Ground clearance: 195mm
Departure angle: 15°
Steering angle: left/right 38°
Rear axle swing: ±6.5°
Min. Turning radius: inner 2100 mm
Outer 4120 mm
Loader weight and load capacity
Scooptram weight 6780 kg
Load weight 8780 kg

Traveling performance
Forward/backward 0-12 km/h
Gradeability 25%
Max. Traction: 54KN
Max. Shovel: 45KN
Tyre size 10.00-20
Tyre pressure: 0.6-0.7 MPa

Hydraulic system pressure
Working pump capacity: 50 ml/r,
rated pressure: 16 MPa
Steering pump capacity: 16 ml/r
rated pressure: 12.5MPa

Oil tank volume
Diesel oil tank: 60L
Hydraulic oil tank: 120L
Electric system
Working voltage: 24V
(consisted of two 12v batteries)
